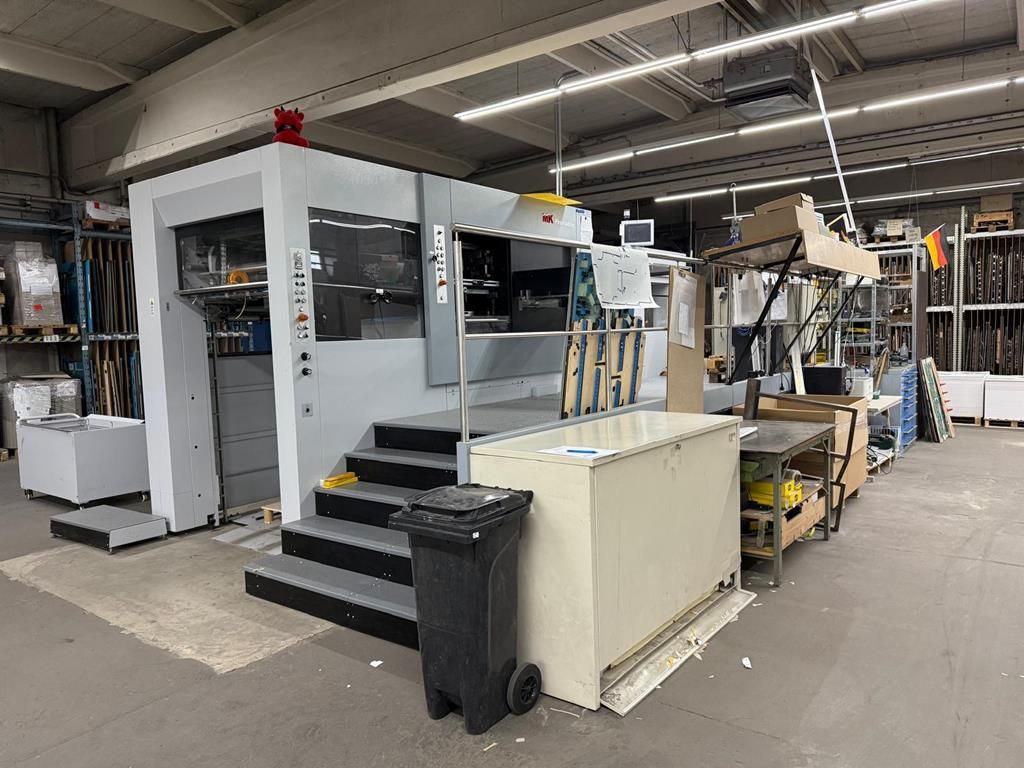

20.001 Heidelberg Promatrix 106 CS

Manufacturer: Heidelberg
Machine type:  die Cutter
Model:  Promatrix 106 CS
Year of construction: 2021

Location: Germany
Size: max. 760 x 1060 mm, min. 300 x 350 mm

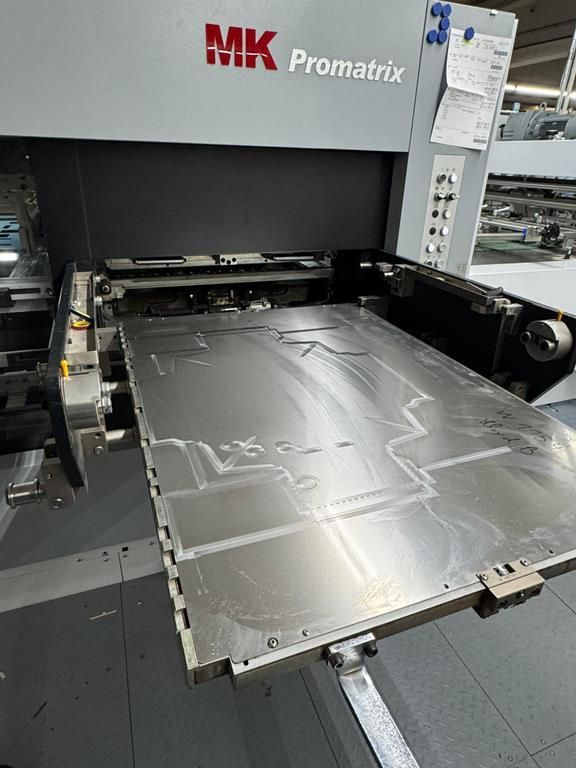

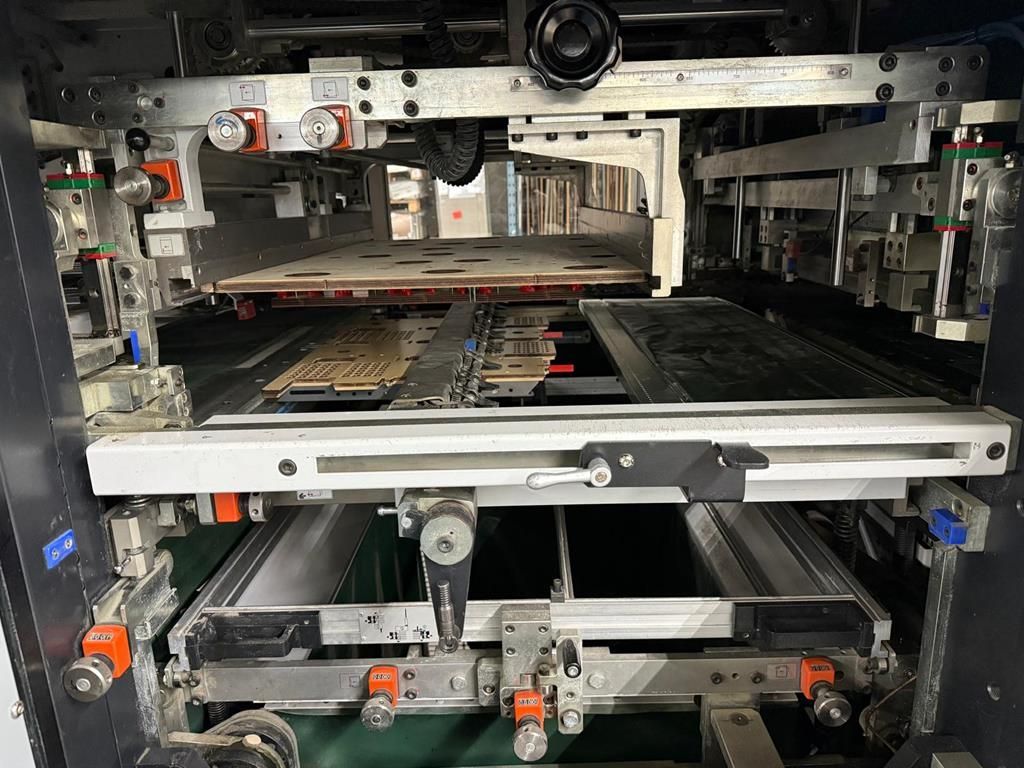

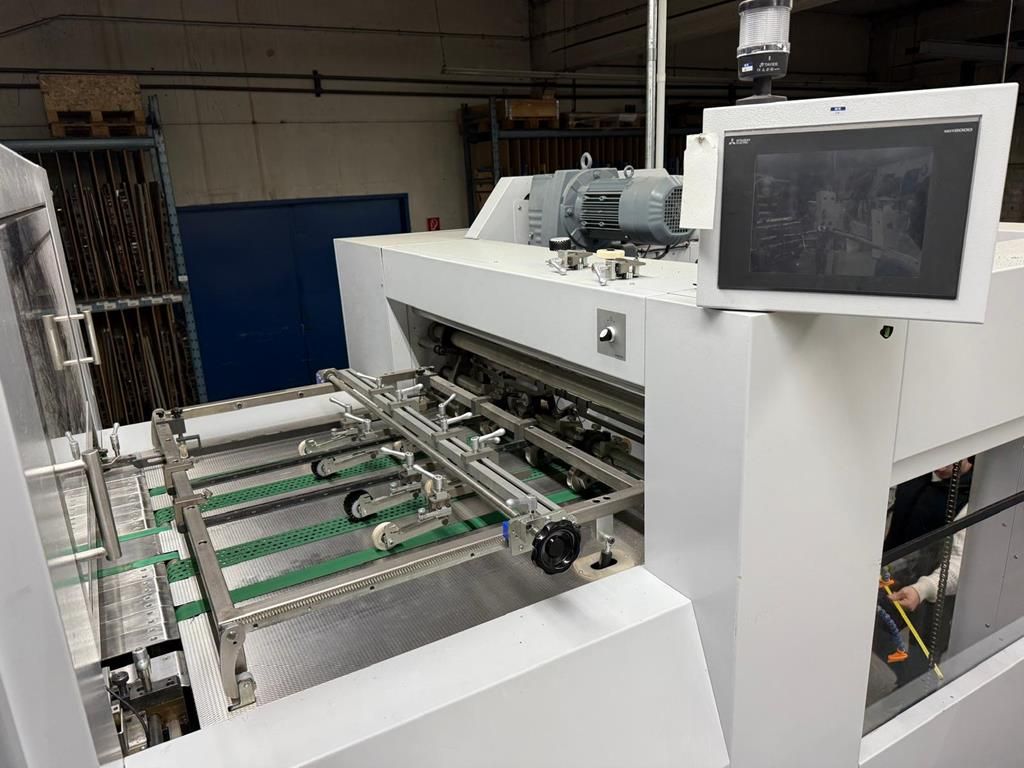

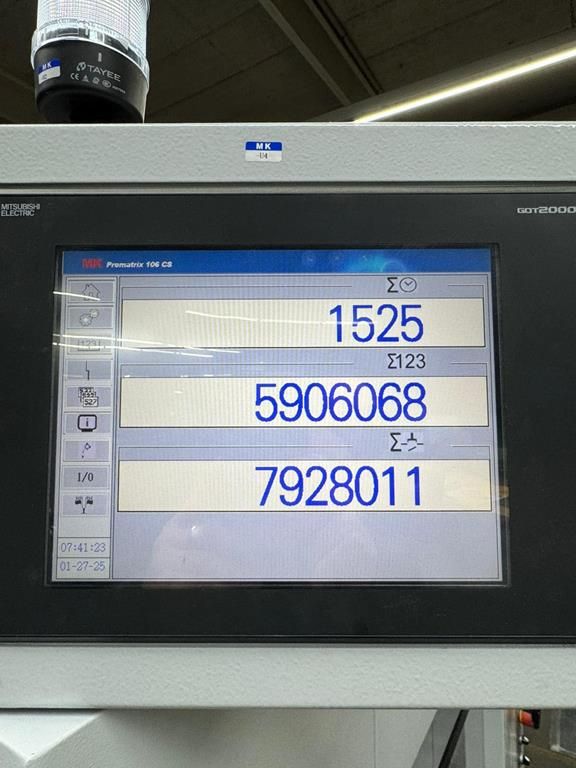

Equipment: stripping station, centerline, non-stop, micrometer adjustment, electric double sheet control, sheet mark device, vacuum inlet belt conveyor, pull site lay mark left, push site lay mark right, 8 mio. strokes, 1 cutting frame quick lock frame upper/lower in stripping station, elevated, max. machine speed 8.000 sheets/hour, max. pressure 260 tons, workable material: paper min. 90 g/m², solid board max. 2000 g/m², corrugated board up to 4 mm.
Others: After arrangement machine can be inspected in production.
Availability: May 2025
Delivery: EXW / ex Site
