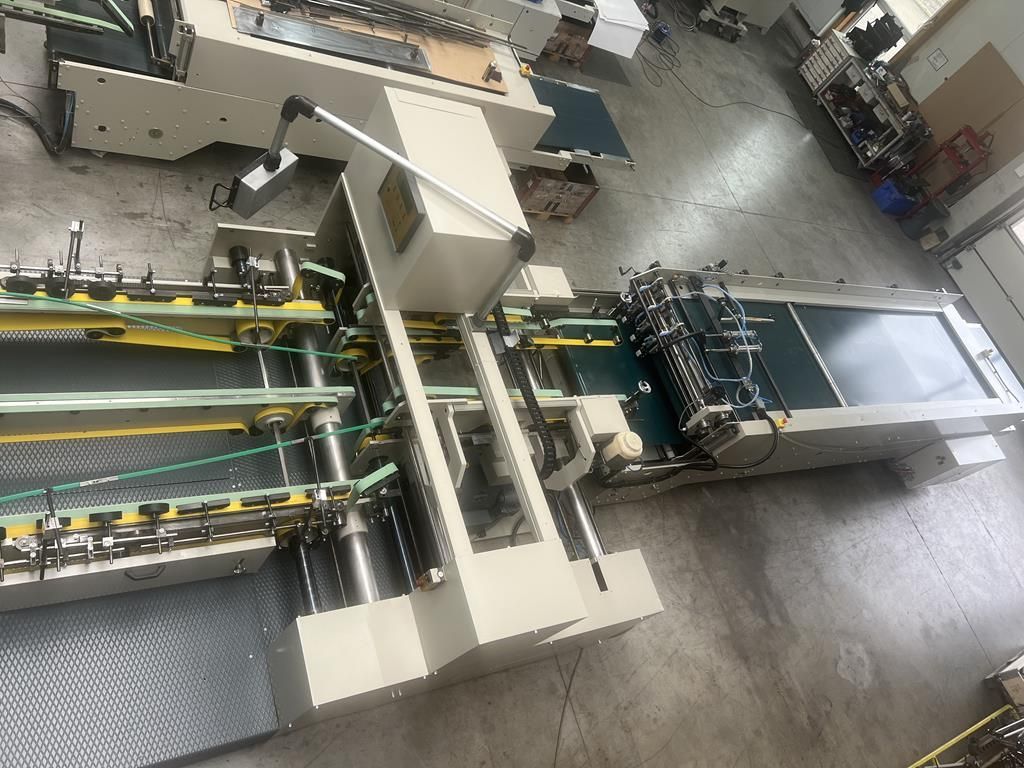

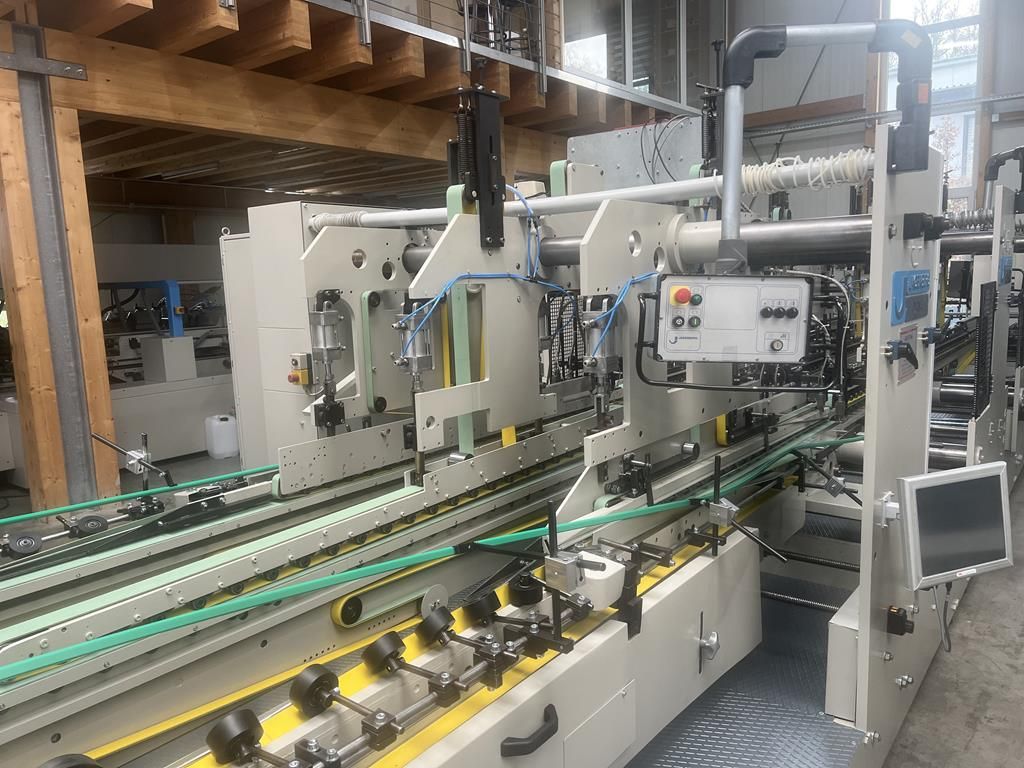

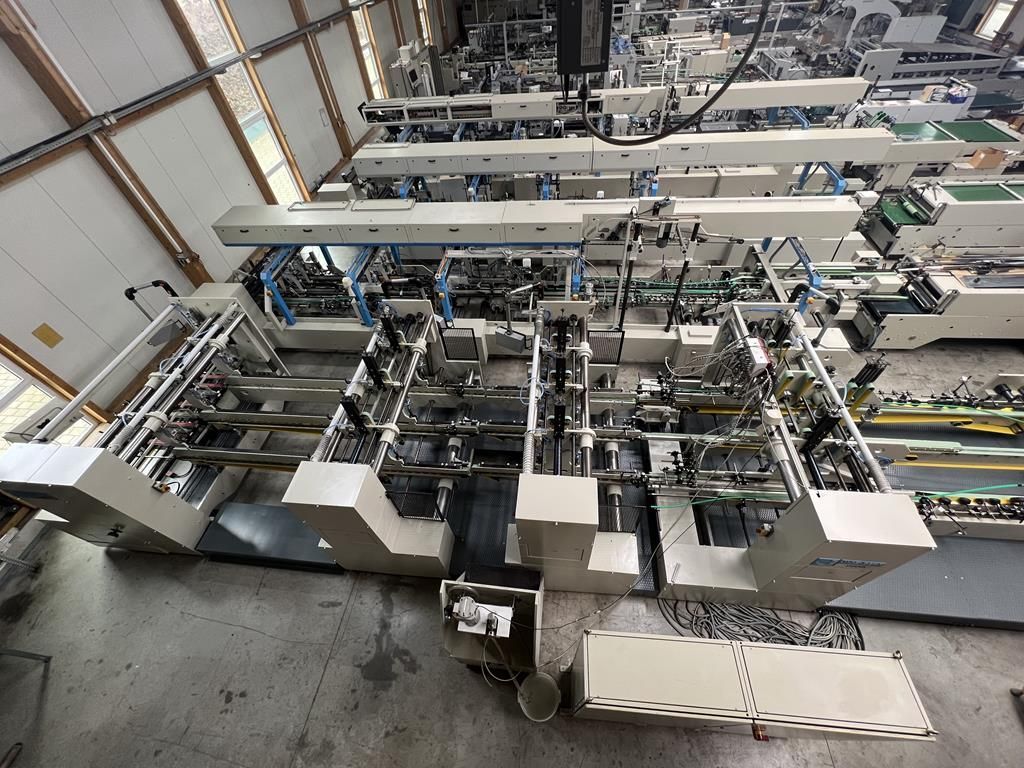

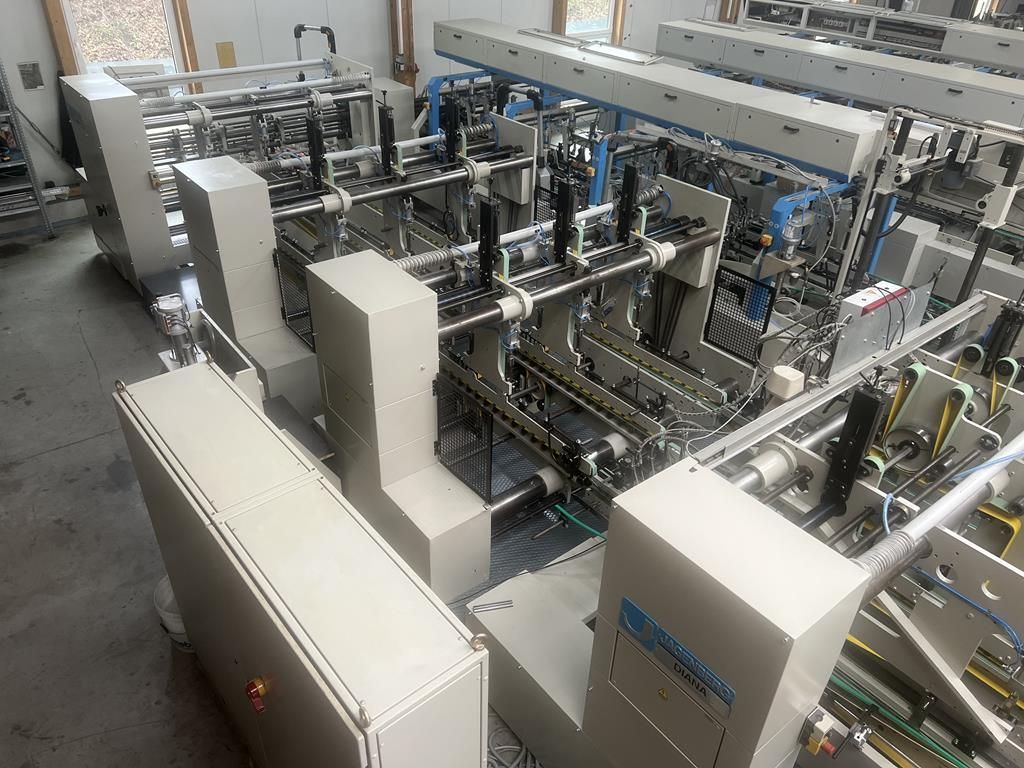

10.023 Jagenberg Diana 225-3

Manufacturer: Jagenberg
Machine type: Folder Gluer
Model: Diana 225-3

Year of construction: 1994
Location: D-75433 Maulbronn, nearest airport Stuttgart
Size: max. 2250 mm, min. 340 mm
Equipment: straight line, lock bottom, double wall,

4 point gluing, electronic upper gluing system HHS XP-E08 with 6 guns, pre breaker left, counter, motorized size adjustment, friction feeder with vacuum & time-relay control, digital read out units, motorized transfer station, middle station in folding, UV- marker, 3 x squaring station at press station, extended press station.
Reconditioning 2024: cleaned, checked, repainted, new transport belts, as well as new press belts.
Others: After arrangement machine can be inspected in running condition.
Available: after arrangement
Delivery: FCA / Free Carrier
