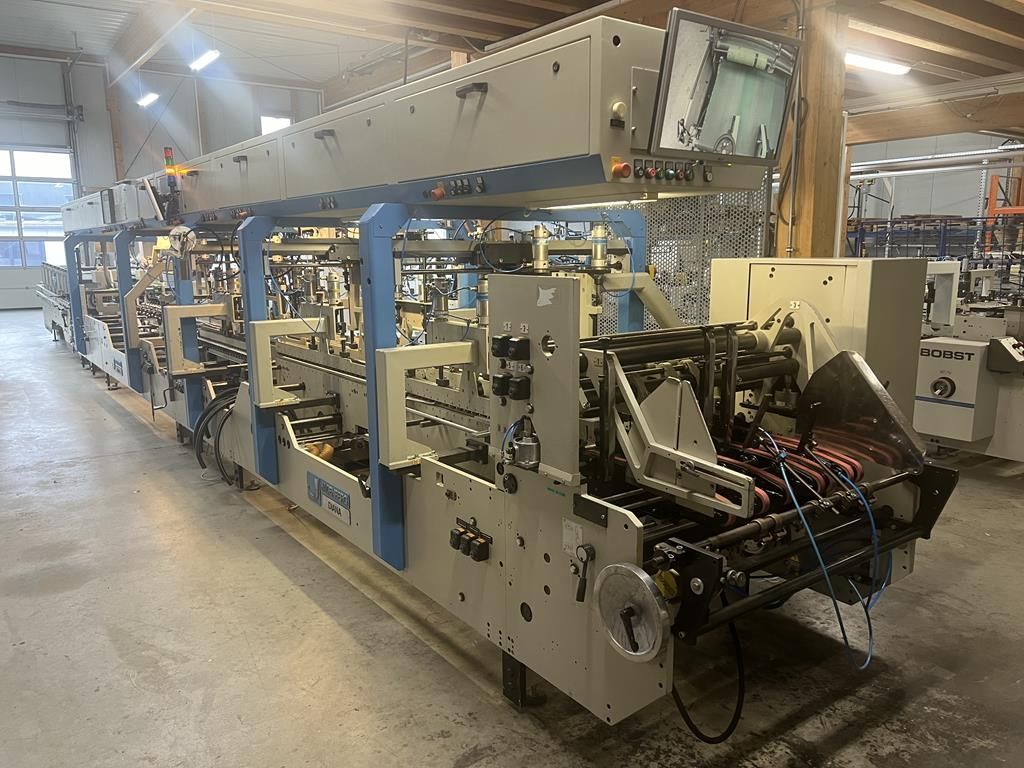

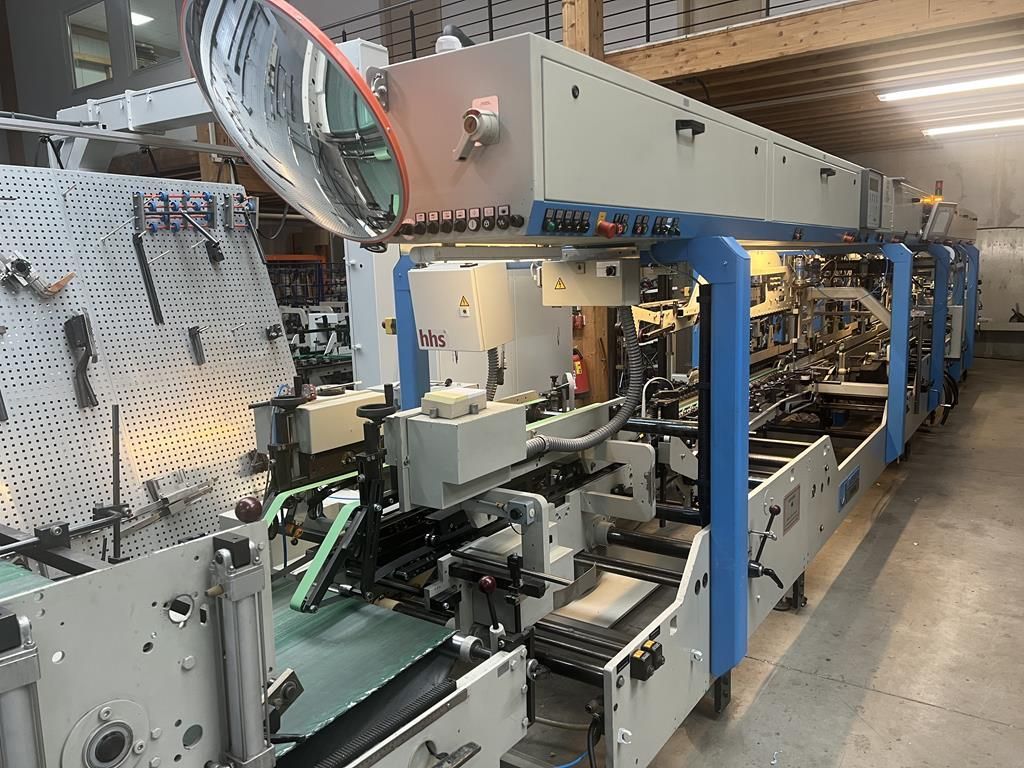

10.037 Jagenberg Diana 115-3

Manufacturer:  Jagenberg
Machine type: Folder Gluer
Model:  Diana 115-3
Year of construction:  1996
Location: D-75433 Maulbronn, nearest airport Stuttgart
Size: max. 1150 mm, min. 45 mm

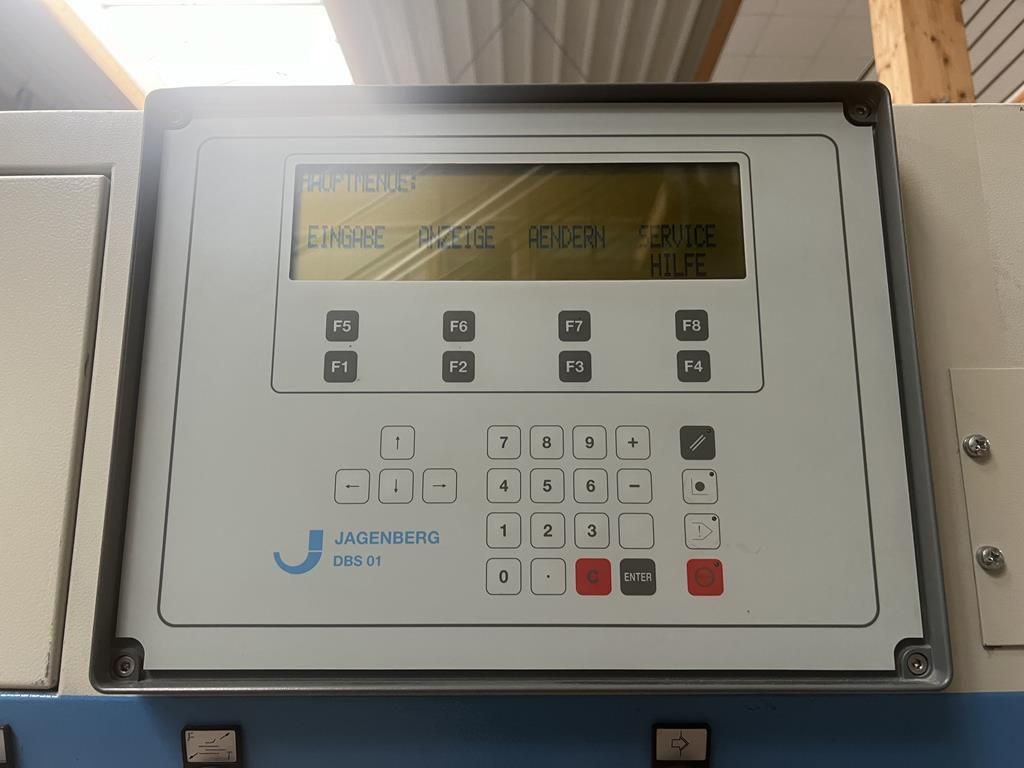

Equipment:  straight line, lock bottom, double wall, 4 + 6 point gluing, electronic upper gluing system HHS X-tend, 8 channels with 6 guns, belt pre breaker, lower disc gluing system left, electronic back folding via servos, feeder with vacuum, pre breaker left, kicker, counter, digital read out unit, pressing device after folding, motorized tuck in station, motorized transfer station, Jagenberg DBS 01 control, video control at delivery, pneumatic, controlled press station

Reconditioning 2024: checked, cleaned, new transport belts, new upper / lower press belts.
Others: After arrangement this machine can be inspected in running condition
Available: after arrangement
Delivery: FCA / Free carrier
